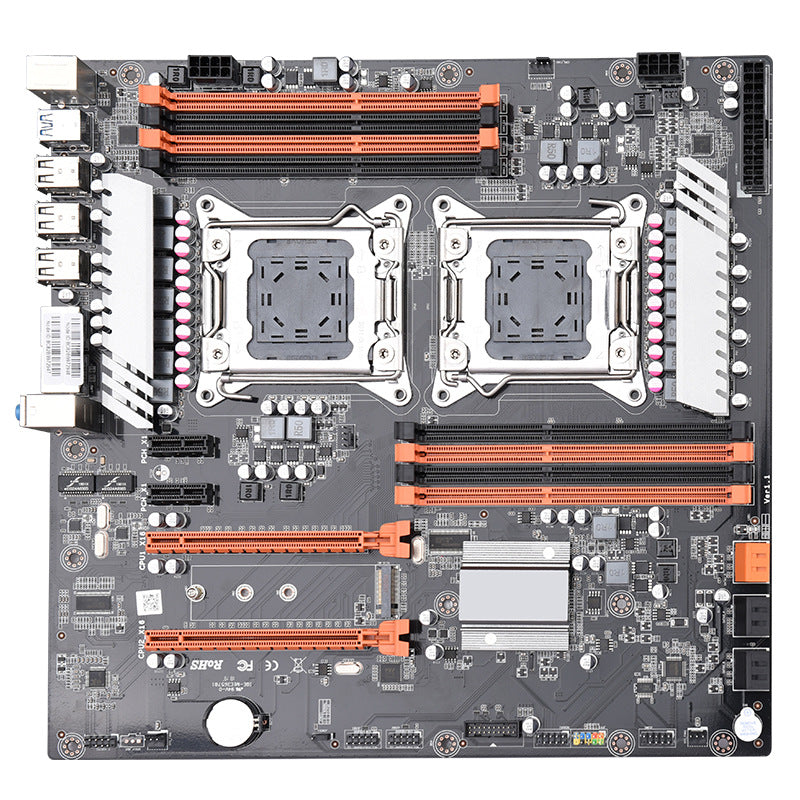

X79 dual motherboard

Motherboard model: X79- 8D

Number of memory slots: 8 * DDR3 supports 1866/1600 / 1333MHz memory

Board type: E- ATX

Support memory capacity: 256G

Motherboard size: 305mm * 290mm

SATA interface: SATA6GB / s * 2 SATA3GB / s * 4

Graphics slot: PCI-E 3.0x16 * 2, PCI-E x1 * 2

PS / 2 interface: standard PS / 2 keyboard and mouse interface

Network card: dry mega network card * 2

Power connector: 24-pin power connector * 1, 8-pin power connector * 2

CPU type: Support LGA201 1 processor

Support system: Support Windows 7/8/10 operating system

PCB thickness: 10 layers

Sound Card: ALC887 7.1 Audio Chip

Power supply phase: 7 +7 phase

Others: onboard M.2 PCI x4 3.0 high-speed hard disk interface * 1, onboard digital diagnostic card * 1, onboard buzzer * 1
